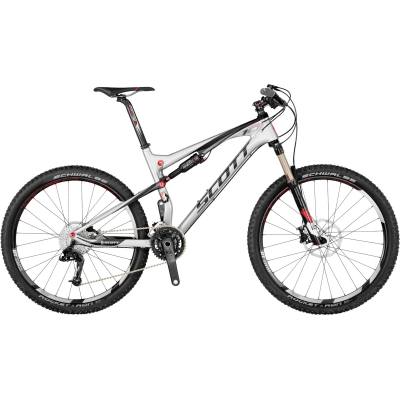

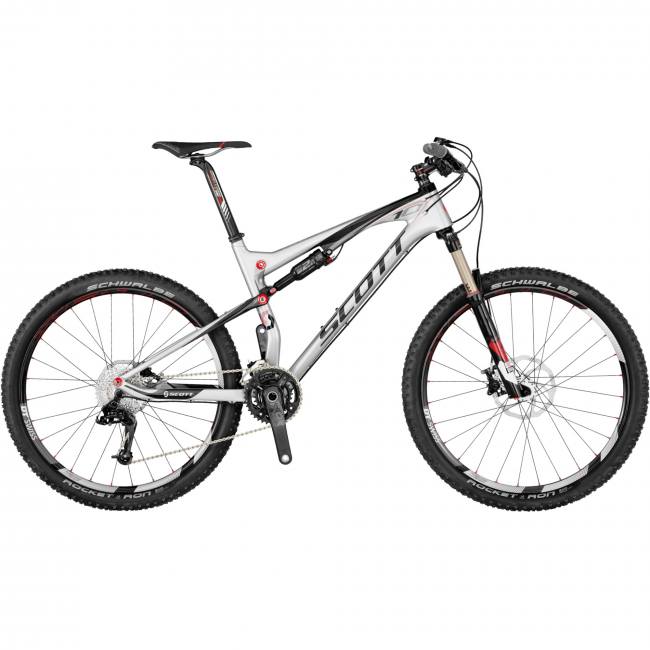

Scott Spark 10 Bike
The Spark 10 is built with a full suspension HMF carbon fiber frame and SRAM XO parts to produce a bike that is the perfect partner for marathons, stage races, and all day fun.
FRAME
Spark Carbon, IMP5 technology, HMF NET, BB 92, Carbon swingarm with 160PM, U-Mono Link, Tapered Headtube, IDS SL dropouts for 142 x 12mm, BB height adjustable, 120mm rear travel
FORK
Rock Shox SID RLT3 Air, DNA3 custom damper with 3 modes, tapered steerer, rebound adjustable, 120 mm travel
REMOTE SYSTEM
Scott Twinloc remote lever, front & rear lockout activate by one lever, Travel adjust: Lockout - 85 - 120mm
SHOCK (REAR)
Scott DT Nude2, 3 modes Lockout-TC-AT, Ball joints, 190 x 50mm, rebound adjustable
HEADSET
Ritchey Pro Tapered 1.5" - 1 1/8", semi integrated 50 / 61mm
DERAILLEUR (REAR)
Sram XO, carbon long cage, 20 Speed
DERAILLEUR (FRONT)
Sram XO, High Mount bottom pull 34.9mm
SHIFTERS
Sram XO Trigger, multi adj., with carbon cap, with matchmaker clamp
BRAKE LEVERS
Avid Elixir 9RS Carbon
BRAKES
Avid Elixir 9RS Carbon, 180/F and 160/R mm HS1 Rotor
CRANKSET
Sram X.0 GXP PF, Carbon crankarm, 39Ax26A T
BB-SET
Sram GXP PF integrated, shell 41x89.5mm
HANDLEBAR
Ritchey Carbon WCS, 18mm Rise, 680 mm, Scott lockon grips
H'STEM
Ritchey WCS C-260, oversize 31.8mm, 1 1/8", 6° angle
SEATPOST
Ritchey WCS Carbon, 31.6mm
SEAT
Selle Italia SLR XP Team Edition, Vanox
HUB (FRONT)
DT Swiss XR10 Disc IT, RWS QR
HUB (REAR)
DT Swiss XR10 Disc IT, 12 x 142mm, RWS
CHAIN
Sram PC 1051
CASSETTE
Sram PG 1070, 11-36 T
SPOKES
DT Swiss Super Comp black
RIMS
DT Swiss XR10 Disc, 28H, Tubeless ready
Reference:
L2017
Brand:
Scott
